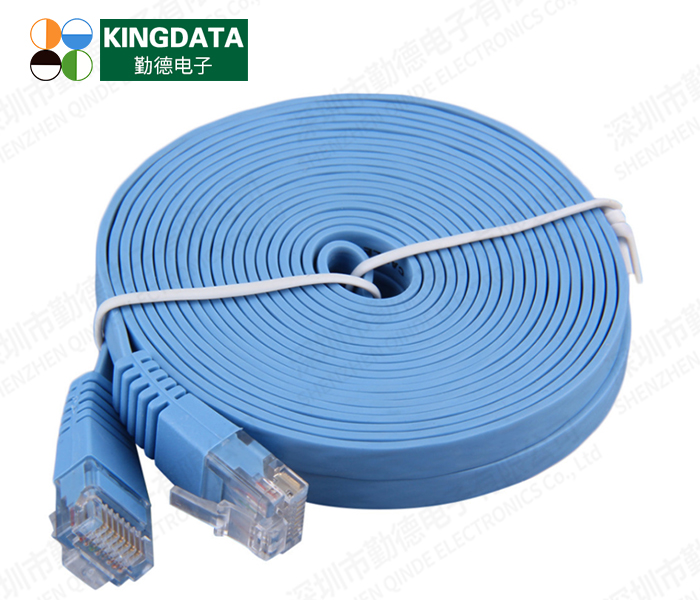

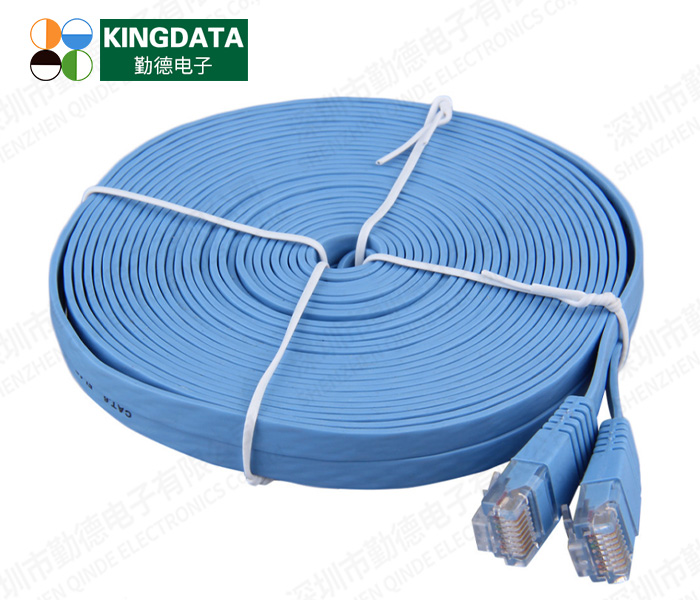

CAT5E Flat patch cable

CAT5E-UTP-32AWG-XXM

Bandwidth: 100MHz

Outer diameter: 6.0*1.5±0.05mm

Bending radius: 10mm

Conductor: 32AWG

Certification: RoHS&REACH

Length, color, packing: as your request

Detailed introduction:

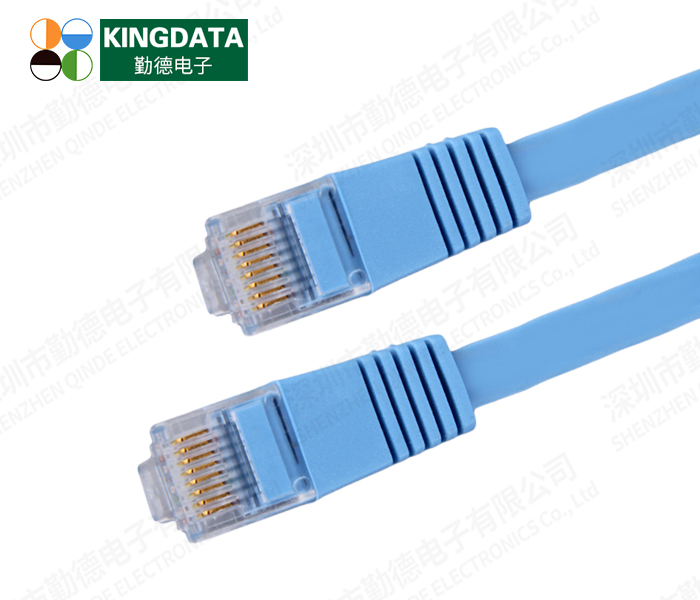

The CAT5E UTP Flat Network Patch Cord consists of an unshielded 8p8c RJ45 crystal plug at each end and 4 pairs of 32AWG(7/0.08mm) bare copper wires. It is typically used for 100Mb Ethernet network connections such as patch panels, switches, computers and routers. The wire diameter is 6.0*1.5 mm, and its flat cable design is perfect for room corners and carpet wiring applications. All cables are 100% tested to pass the standard Fluke CAT5E channel test, and a printed test report is included if you want. As a professional network cable manufacturer, we provide OEM&ODM services. Available in any length and in any color. If you are interested in our cables of this type, please contact our sales team at mark@king-data.com.

Product through train

Product train

Service Hotline：

0755-29769913
0755-29769915

Product Details

物理特性		电气特性
电缆类型	CAT5E UTP	带宽	100MHz
连接器类型	RJ45	导体直流电阻	153Ω 100m（最大值）
接线方案	T568A或T568B	阻抗	100Ω
额定温度	-20°C至+75°C	电容	5600pf/100m
额定电压	30V	传播延迟	545ns/100m（最大值）
认证	UL / RoHS	延迟偏移	45ns/100m（最大值）

导体规格		接头种类
导体材质	多股裸铜	接头类型	8P8C非屏蔽RJ45
导体大小	32AWG(7*0.08)	接头类别	公头
数量	4对双绞线	接头材质	PC
绝缘	HDPE	触点材料	铜合金，镀金 – 50µm
直径	0.55±0.05mm	外壳材质	模压PVC

线缆属性		产品应用
外被材质	PVC或LSZH	水平网络安装
平均最小厚度	0.3mm	100 BASE-T；10 BASE-T (IEEE 802.3)
外径	6.0*1.5mm	适配器、集线器、交换机、路由器、DSL/电缆调制解调器、接线板等。
外被颜色	黑、白、灰、蓝、定制
