CAT6 Ultra Thin Patch Cable

CAT6 Ultra Thin Patch Cable

Bandwidth:250MHz 1Gbps

OD:3.7±0.2mm

Bend Radius:10mm

Conductor:28AWG

Appravals:RoHS&REACH

Length,Color,Package:As per your request

Details：

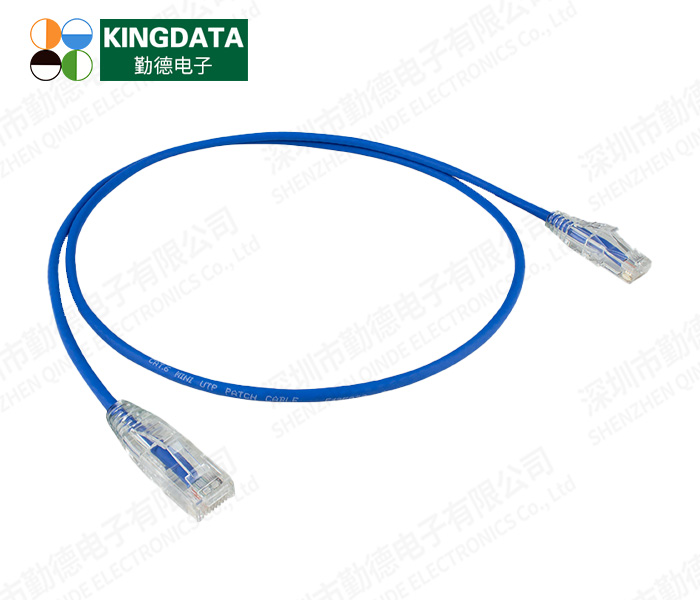

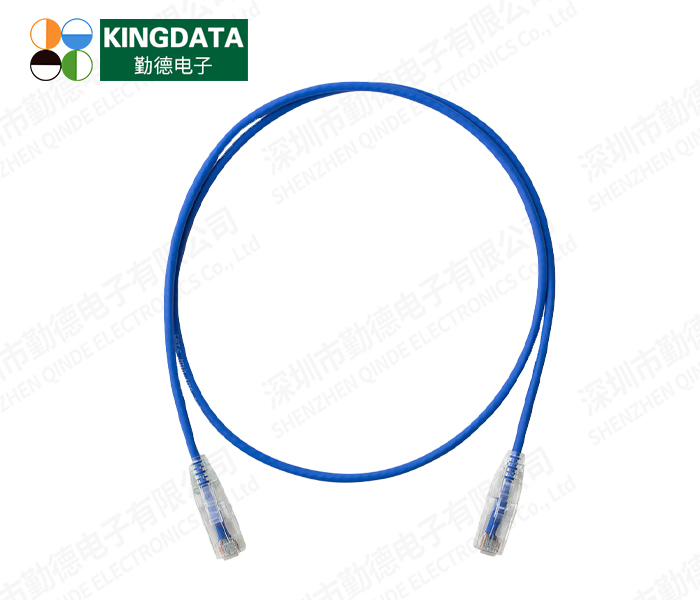

Cat6 Fluke Component (Patch Cord) Test Passed Super Slim OD:3.6mm Patch Cable features very small diameter(OD) at 3.6±0.2mm and very flexible. There is one big difference of this category 6 cable is that the PE cross is not included, but no discount in its performance when compare with the common Cat6 cables. Consists of unshielded 8p8c RJ45 male connector on each end and 4 twisted pairs 28AWG(7/0.12mm) bare copper wires, PVC or LSZH jacket. It is typically used for 10Gigabit Ethernet network connections such as patch panels, switches, computers and routers. It’s ultra-thin cable design works perfectly in high density server room applications. All cables are 100% tested to pass a standard Fluke CAT6A Patch Cord Test and can come with a printed test report if you needed.

Product through train

Product train

Service Hotline：

0755-29769913
0755-29769915

Product Details

Physical Characteristics

•Cable Type – Cat6 UTP
•Connector Type(s) – RJ45
•Wiring Scheme – T568A or T568B
•Temperature Rating – -20°C to +75°C
•Voltage Rating – 30V

Conductor (Qty. 4 twisted pair)

• Conductor Type – 28AWG(7/0.12), Stranded Bare Copper
• Insulation – HDPE
• Dimeter – 0.55±0.05mm
• Pair Identification:
• Pair1=Orange, Orange-White
• Pair2=Blue, Blue-White
• Pair3=Green, Green-White
• Pair4=Brown, Brown-White

Connector Type (Qty. 2)

• Connector Type – Unshielded 8P8C (RJ45)
• Gender – Male
• Connector Material – PC
• Contact Material – Copper Alloy, Gold Plating – 1/3/50µm
• Hood Material – Transparent PC

Overall Cable

• Jacket – PVC/LSZH/TPE
• Minimum Average Thickness – 0.30mm
• Outer Diameter – 3.60 ± 0.20mm

Electrical Characteristics

• Conductor DC Resistance – 58.3Ω100m (maximum)
• Impedance – 100Ω
• Capacitance – 5600pf/100m
• Propagation Delay – 545ns/100m (maximum)
• Delay Skew – 45ns/100m (maximum)

Product Application

• Horizontal networks installation
• 1Gigabit;Gigabit 1000 BASE-T; 100 BASE-T; 10 BASE-T (IEEE 802.3)
• Adapters, Hubs, Switches, Routers, DSL/Cable Modems, Patch Panels etc.
